RB73 stoves aren’t welded into one fixed design — they’re modular by nature.
That means:
So instead of buying a new stove when your layout changes…
You can reconfigure the one you already own.
Not bad for something made of heavy-gauge CorTen steel.
This is the simplest conversion — and the one most people actually want.
Why do it?
The process follows the same method as replacing a side panel:
1. Remove the internal components
Yes — RB73 Quaruba & Fennek stoves can be converted from a 4-sided to a 3-sided configuration (and back again) by replacing one of the back/side panels. This uses the same process as swapping a panel, as outlined in the RB73 repair manual.
2. Prepare the screws
This step matters more than people think — skip it and you’ll regret it.

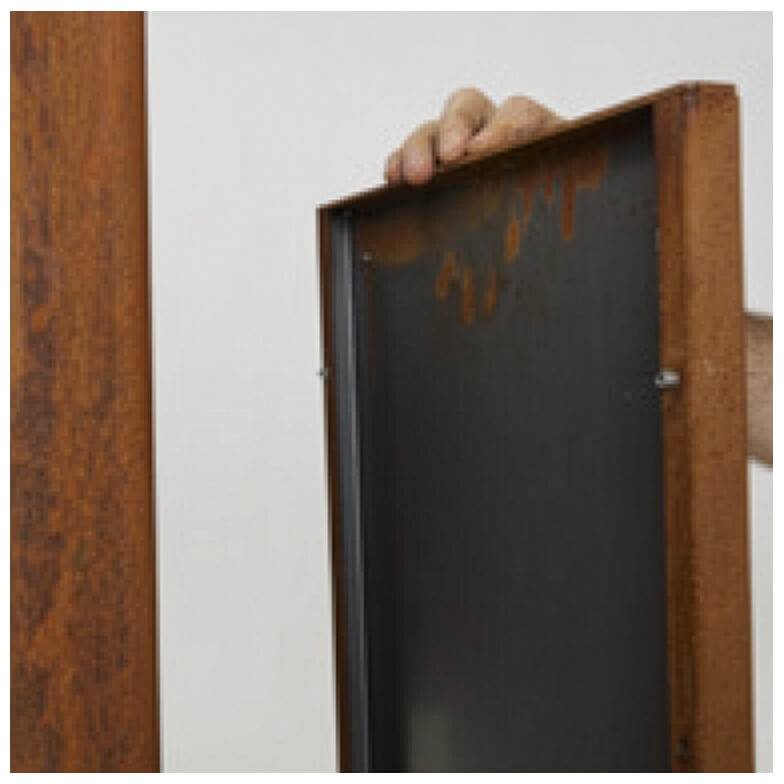

3. Remove the existing panel
Gravity has zero sympathy for your toes.
4. Install the new panel
This bottom-up approach ensures proper alignment
5. Reinstall internal components
Let’s save a few headaches:
Do it properly once, and it’ll last years.
Rush it… and you’ll be back here Googling again.
If your stove is sitting against a wall but still open on all sides, you’re probably not getting the best out of it.
This is also possible — but with a couple of extra considerations.
Compatible models:

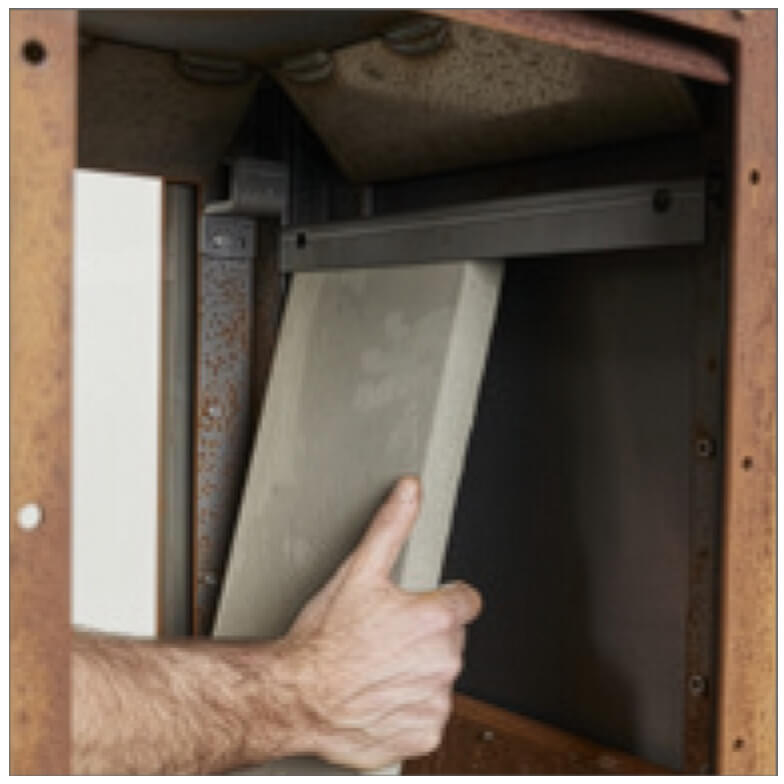

Important: Rear Firebrick Considerations
If your 3-sided stove includes a rear firebrick, things get slightly more involved:
And here’s the key rule:
You should never run the stove with a gap in the base brick. Your options:
Not difficult — but definitely not something to ignore.

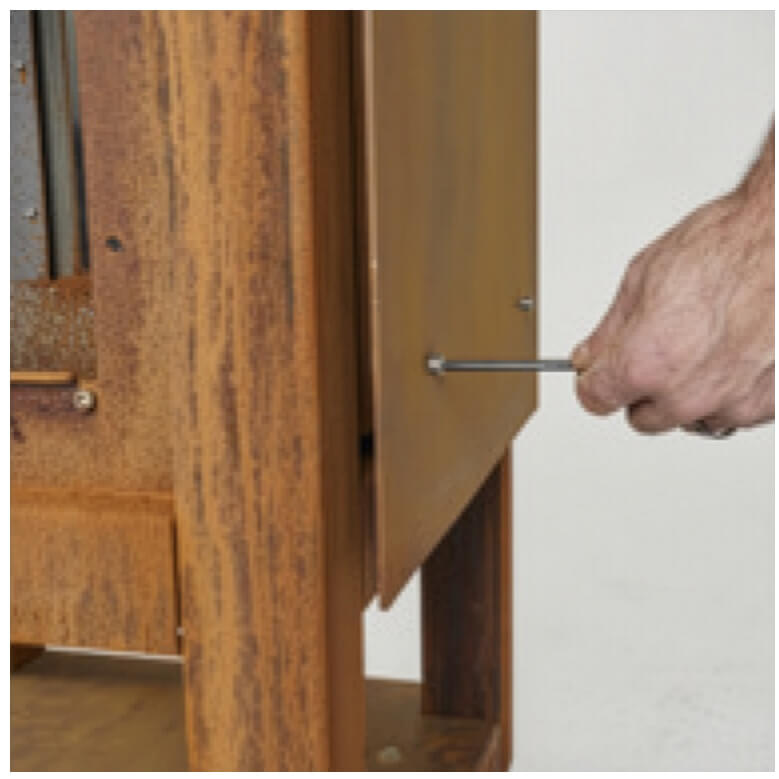

If your stove has a heat shield fitted to the rear panel, this must be removed first.
How:
The heat shield is mounted onto the panel itself, so it has to come off before the swap.
This isn’t just cosmetic — it changes how the stove behaves.
🔥 4-Sided Stove
🔥 3-Sided Stove
What looks like a simple repair job is actually one of the most underrated features of RB73 stoves:
They evolve with your space
Whether you’re redesigning your garden, moving house, or just changing how you use your fire — you’re not locked into one setup.
And that’s something most outdoor stoves simply can’t offer.
RB73 outdoor woodburners with glass panels should typically be positioned 1 metre away from combustible materials. However, this can be significantly reduced depending on the model and configuration, to as low as 10cm.
Replacing glass in an RB73 stove depends on the model and location: door glass is removed using pop-out clips, while side and rear panels (on certain models) lift out or are unbolted first. In all cases, the new glass must sit perfectly flat with no wobble—there are no rope seals or tightening involved.
A well-designed logstore keeps firewood dry by allowing constant airflow while protecting it from direct rain. Raised bases, slatted sides, and angled roofs work together to let moisture escape and prevent water from soaking in.
